Renon Power · Compact C&I Battery Cabinet

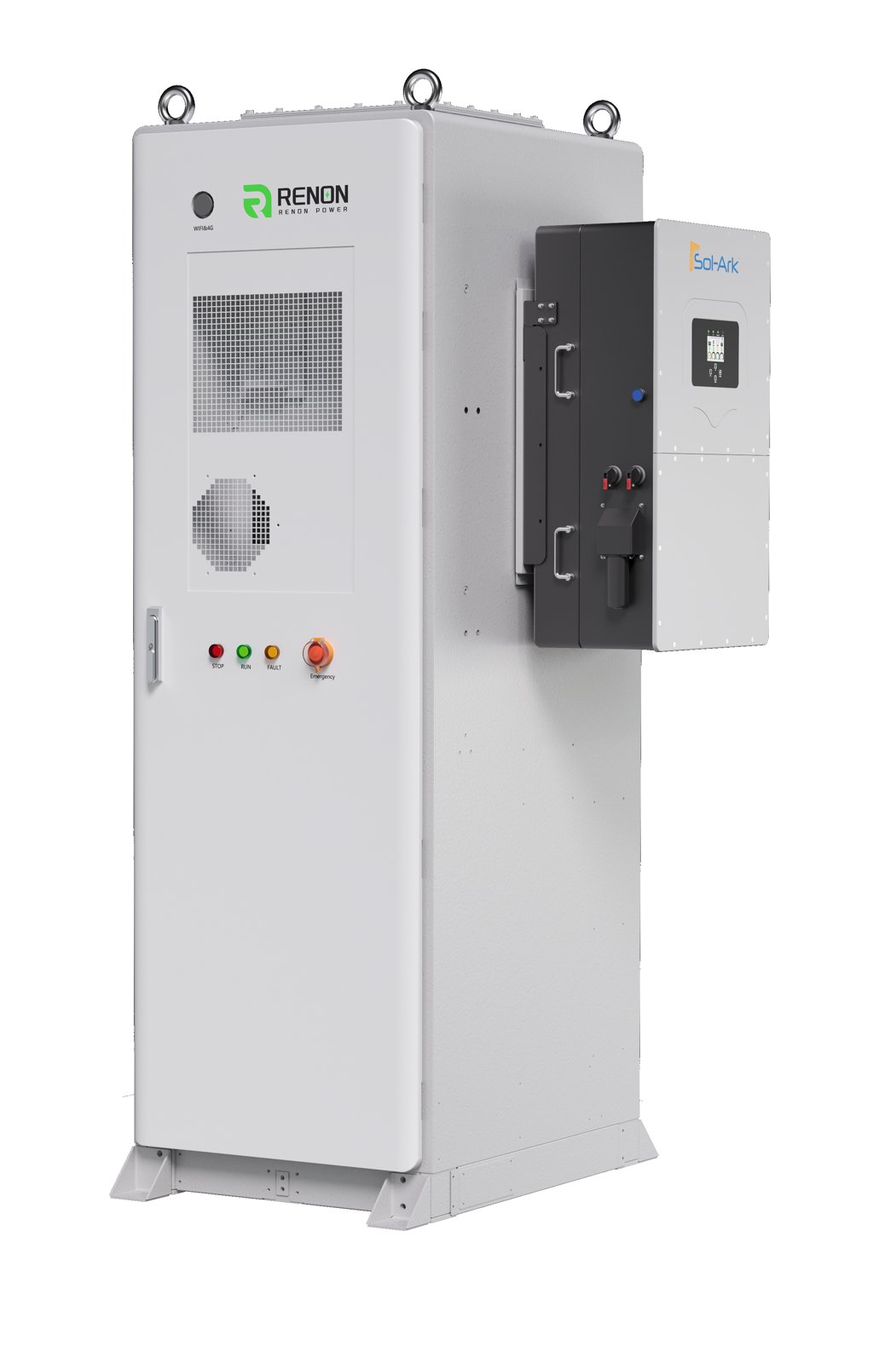

Renon Power ECube 60AP

Compact 61.44 kWh air-cooled C&I cabinet with integrated fire and gas detection.

The Renon Power ECube 60AP is an air-cooled 61.44 kWh commercial and industrial battery cabinet sized for small businesses, retail sites, and light industrial loads. Efficient air-cooling supports high-rate cycling, and built-in fire and gas detection with multi-level safety keep operation reliable. Available in 480 V and 208 V configurations.

Plan an ECube 60AP install Schedule a consultation

Download spec sheet (PDF)

Key features

61.44 kWh usable capacity
60 kW AC output (480 V) / 30 kW (208 V)
78 kW PV input (480 V system)
Air-cooled — high-rate cycling
Built-in fire and gas safety detection
>8,000 cycles, IP55 outdoor cabinet

Specifications

System Energy: 61.44 kWh
AC Output Power: 60 kW (480 V) / 30 kW (208 V)
PV Input Power: 78 kW (480 V) / 39 kW (208 V)
Dimensions (W×D×H): 29.5 × 37.4 × 89.7 in
Weight: ~2,315 lb
IP Rating: IP55
Cycle Life: >8,000 cycles
Certifications: UL 1973, UL 9540, UL 9540A, FCC Part 15 Subpart B

Specifications shown for reference. Lumis will confirm final scope and configuration during system design.
