Renon Power · C&I Outdoor Battery Cabinet

Renon Power MPack 233A

233 kWh all-in-one liquid-cooled C&I outdoor BESS with 125 kW rated output.

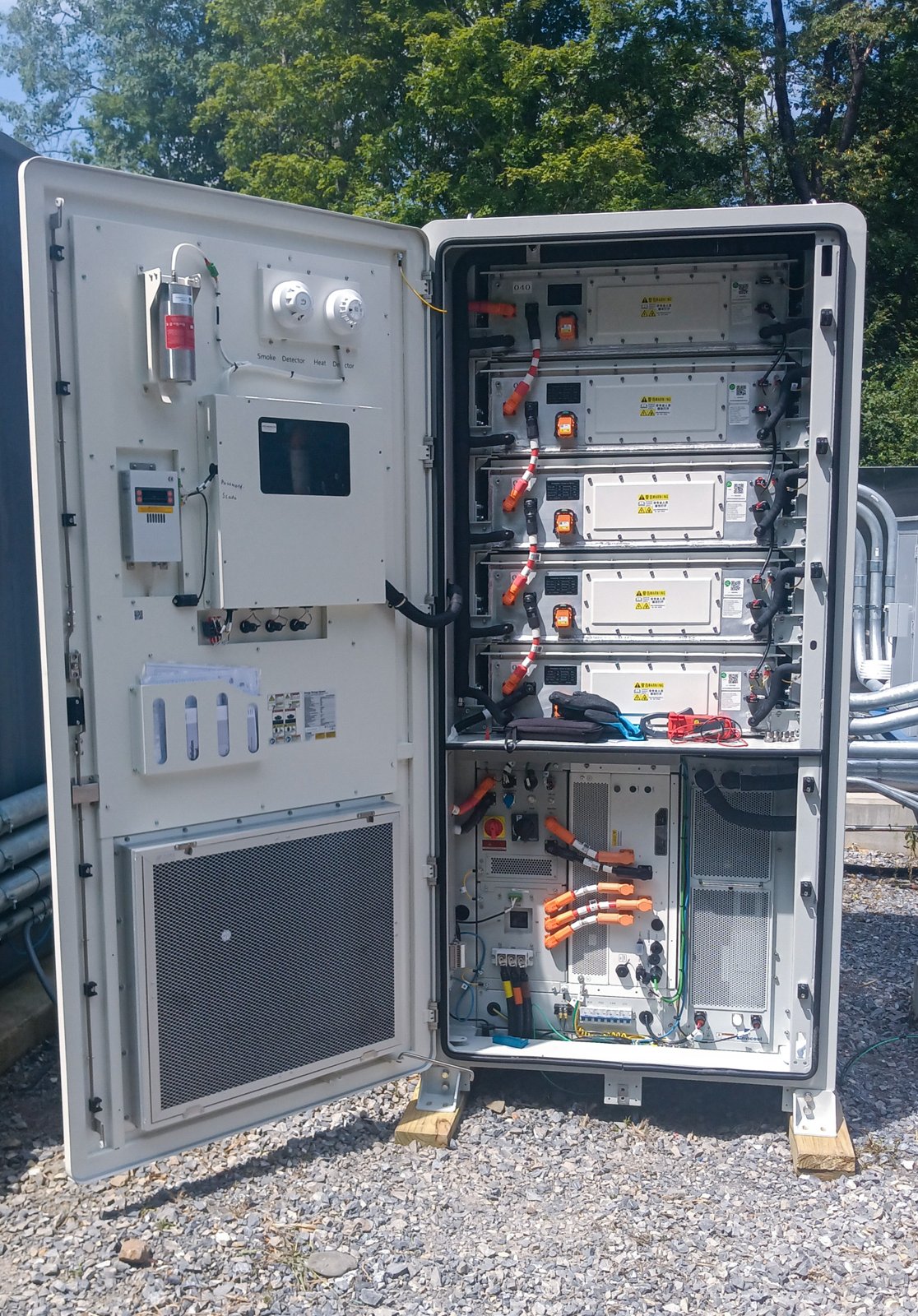

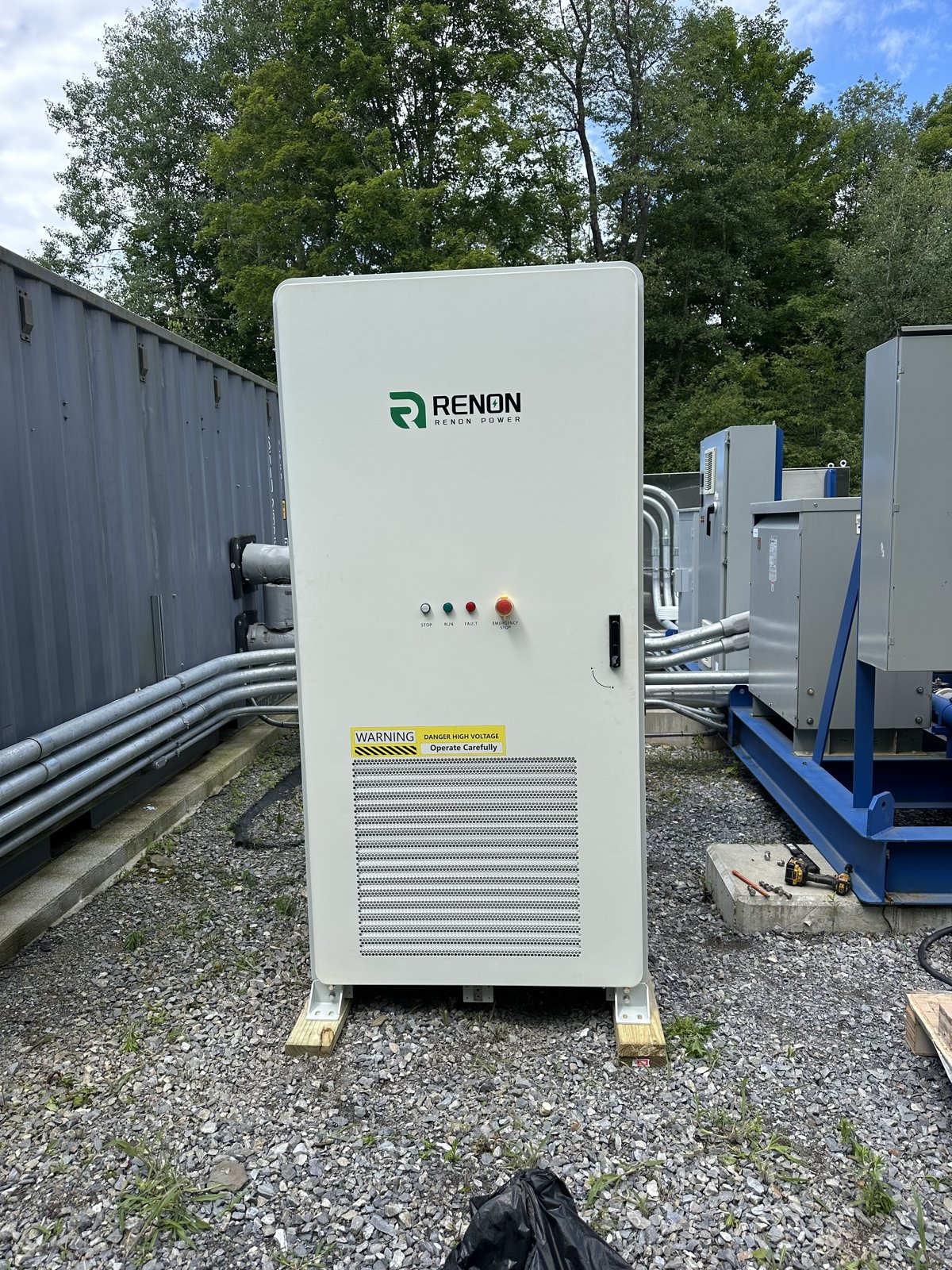

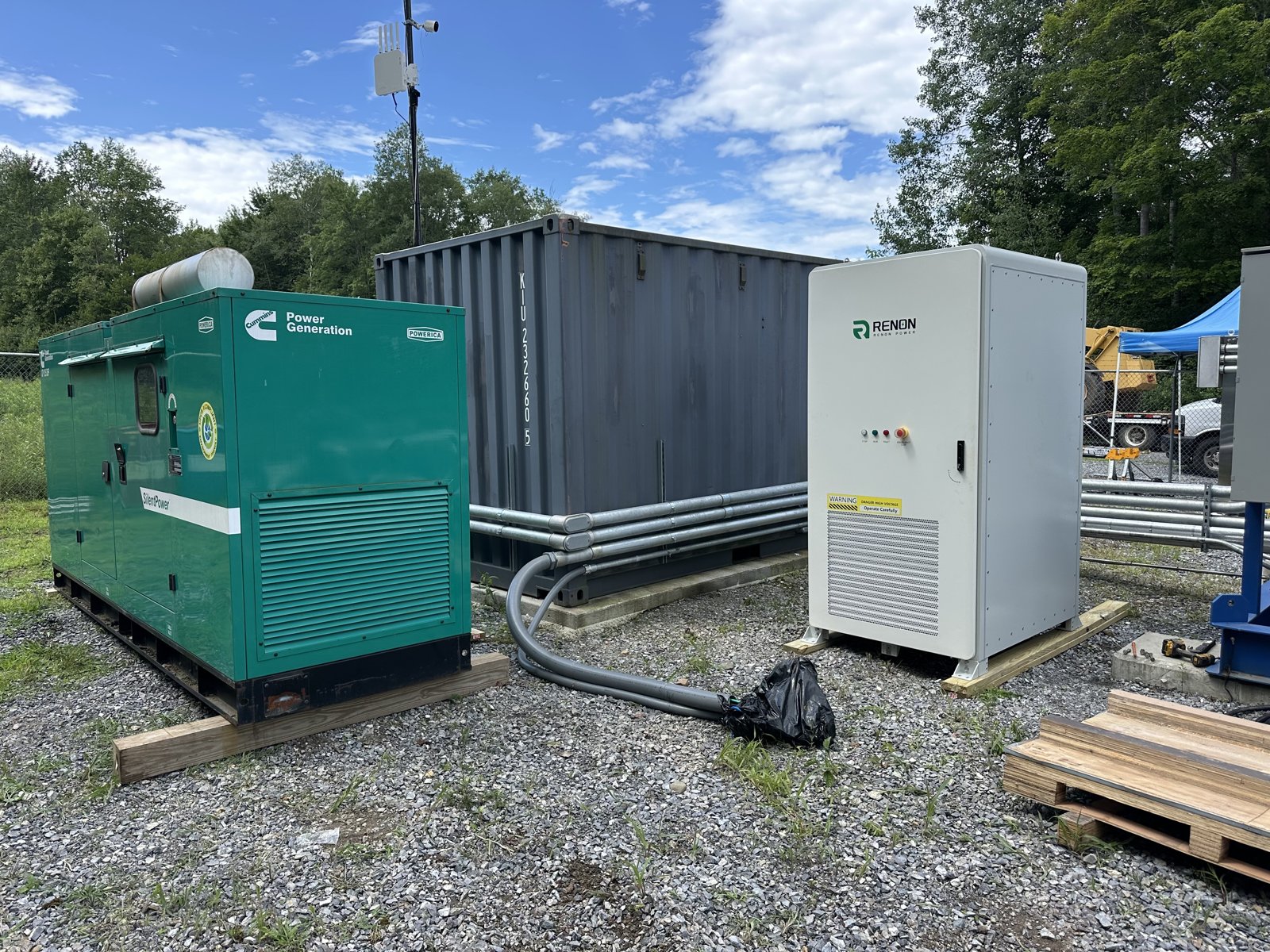

The Renon Power MPack 233A is an all-in-one, liquid-cooled 233 kWh commercial and industrial outdoor battery cabinet. It integrates battery, BMS, thermal management, and multi-level fire safety in a serviceable enclosure built for demand-charge mitigation and on-site resiliency. 125 kW rated output at 480 Vac, 90% depth of discharge, and IP54 enclosure.

Get pricing on the MPack 233A Schedule a consultation

Download spec sheet (PDF)

Key features

233 kWh usable capacity
125 kW rated output at 480 Vac
137.5 kVA max AC output
All-in-one liquid-cooled design
Multi-level fire prevention + real-time monitoring
IP54 outdoor cabinet, 90% DoD

Specifications

System Energy: 233 kWh
Rated Output Power: 125 kW
Rated Output Voltage: 480 Vac
Max AC Output Power: 137.5 kVA
Dimensions (W×D×H): 43 × 57.3 × 93.4 in
Weight: ~5,798 lb (±10%)
IP Rating: IP54
Certifications: UL 1973, UL 9540, UL 9540A, UL 1741 SB, IEEE 1547

Specifications shown for reference. Lumis will confirm final scope and configuration during system design.
