Renon Power · Containerized BESS

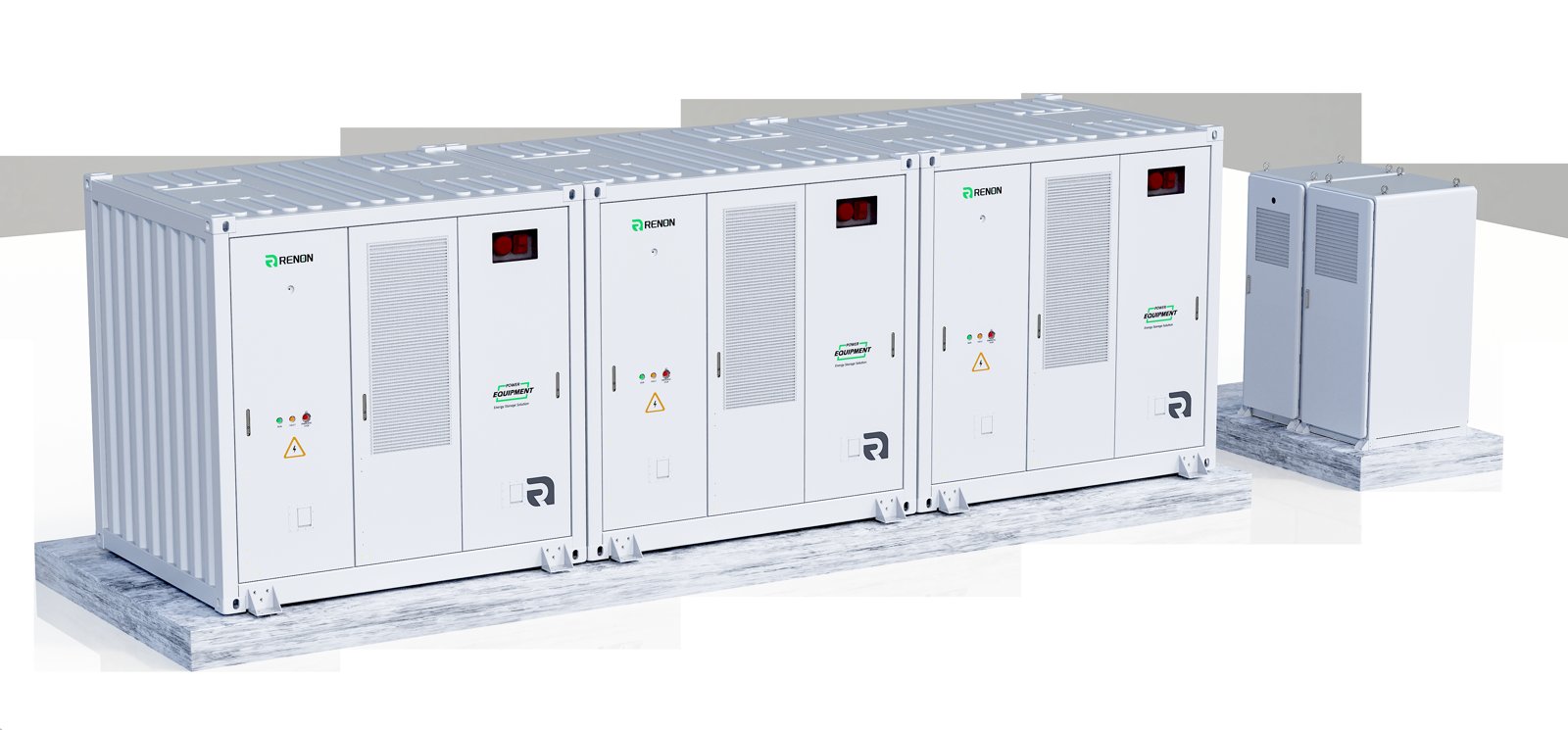

Renon Power Smart Matrix A (Container)

1.67 – 5 MWh containerized BESS with integrated PCS, BMS, EMS, and fire protection.

The Renon Power Smart Matrix A is a containerized 1.67 MWh AC-integrated battery energy storage system, expandable up to 5 MWh (3 units in parallel). Purpose-built for large C&I, microgrid, and PV-storage-charging projects, it integrates PCS, battery, BMS, and station-level EMS into a single unit — reducing connection costs and enabling modular scale-up. Advanced fire protection with temperature control, detection, and automatic emergency activation.

Discuss a containerized BESS Schedule a consultation

Download spec sheet (PDF)

Key features

1,672 kWh per container, up to 3 in parallel (≤5 MWh)
Integrated PCS, battery, BMS, and station-level EMS
1,331.2 Vac nominal AC output
UPS-grade backup for critical loads
Advanced fire protection with automatic emergency activation
Customizable electrical cabin configurations

Specifications

Capacity: 1,672 kWh × N (N ≤ 3)
Operating Voltage Range: 1,218.88 – 1,476.8 V
Nominal AC Output: 1,331.2 Vac
Dimensions (W×D×H): 117.75(×N) × 96 × 102.1 in
Total Weight: 33,069 lb × N
Certifications: UL 1741, UL 9540, UL 9540A, IEEE 1547, IEEE 1547.1, CSA C22.2 No 107.1, UN 3536

Specifications shown for reference. Lumis will confirm final scope and configuration during system design.
