Megarevo R-Series Split-Phase Hybrid Inverter

Split-phase 120/240 V hybrid inverter, 5–16 kW, 48 V battery — 4 MPPT, UL1741-SB, backup-ready.

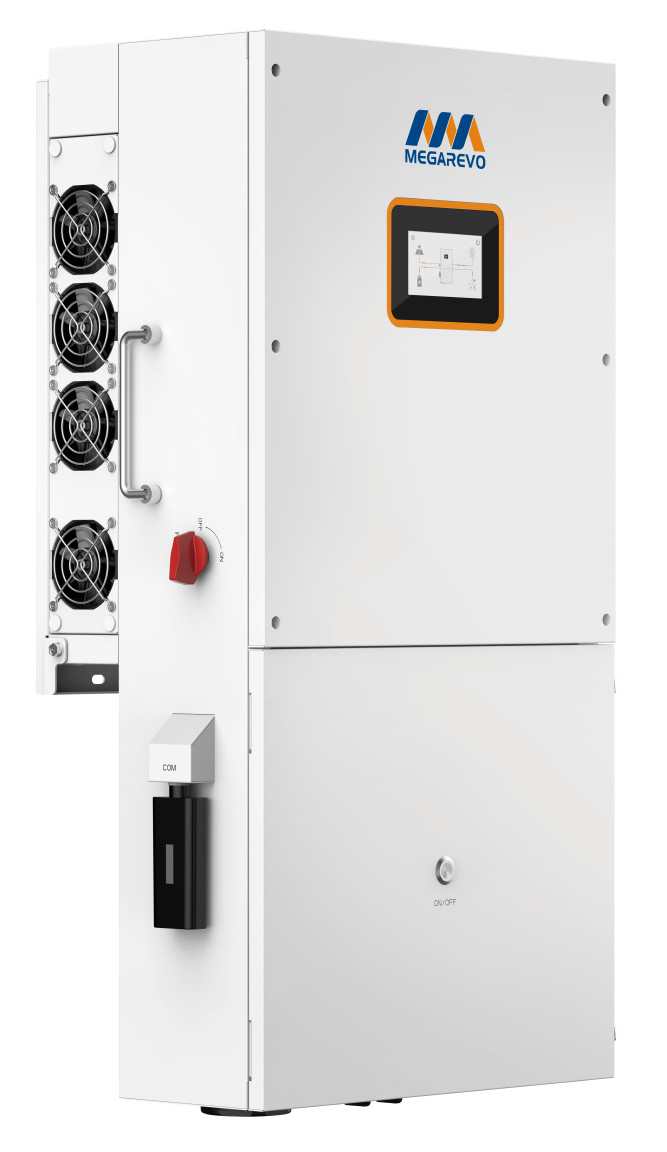

The Megarevo R-Series is a family of split-phase 120/240 V hybrid inverters for North American homes and light-commercial sites, spanning 5 to 16 kW on a 48 V battery. Every model carries four MPPT trackers with up to 500 V PV input and AC-coupled retrofit support for adding storage to an existing solar array, plus generator input for diesel backup. They handle 100% unbalanced loads with up to 200 A of grid pass-through on the larger units, in an IP65 / NEMA 3R enclosure with integrated rapid shutdown and forced-air cooling.

Key features

• Split-phase 120/240 V output, 5–16 kW
• 48 V battery; 4 MPPT, up to 500 V PV input, up to ~97% efficiency
• AC-coupled — retrofits an existing solar system (on- or off-grid)
• Generator input for diesel backup
• 100% unbalanced-load support; 100–200 A grid pass-through
• IP65 / NEMA 3R with integrated rapid shutdown (NEC 690)
• UL1741 SA/SB, UL1699B, CSA; IEEE 1547 & 2030.5, CA Rule 21
• 5-year warranty

Specifications

Configuration

Split-phase 120/240 V

Battery

48 V nominal (40–58 V), Li-ion or lead-acid

MPPT

4 trackers, 120–500 V, 500 V max PV

Grid Pass-through

100 A (5–10 kW) / 200 A (12–16 kW)

Peak Efficiency

Up to 97.3% (CEC)

Protection

IP65 / NEMA 3R, arc-fault, rapid shutdown, anti-islanding

Cooling

Forced air

Operating Temp

–25 to +60 °C

Certifications

UL1741 SA/SB, UL1699B, CSA; IEEE 1547 / 2030.5; FCC Part 15 B

Display / Comms

Touch panel; RS485, CAN, Wi-Fi, 4G (optional)

Warranty

5 years

Specifications shown for reference. Lumis will confirm final scope and configuration during system design.
