Renon Power · Customizable Residential Battery
Renon Power EBrick

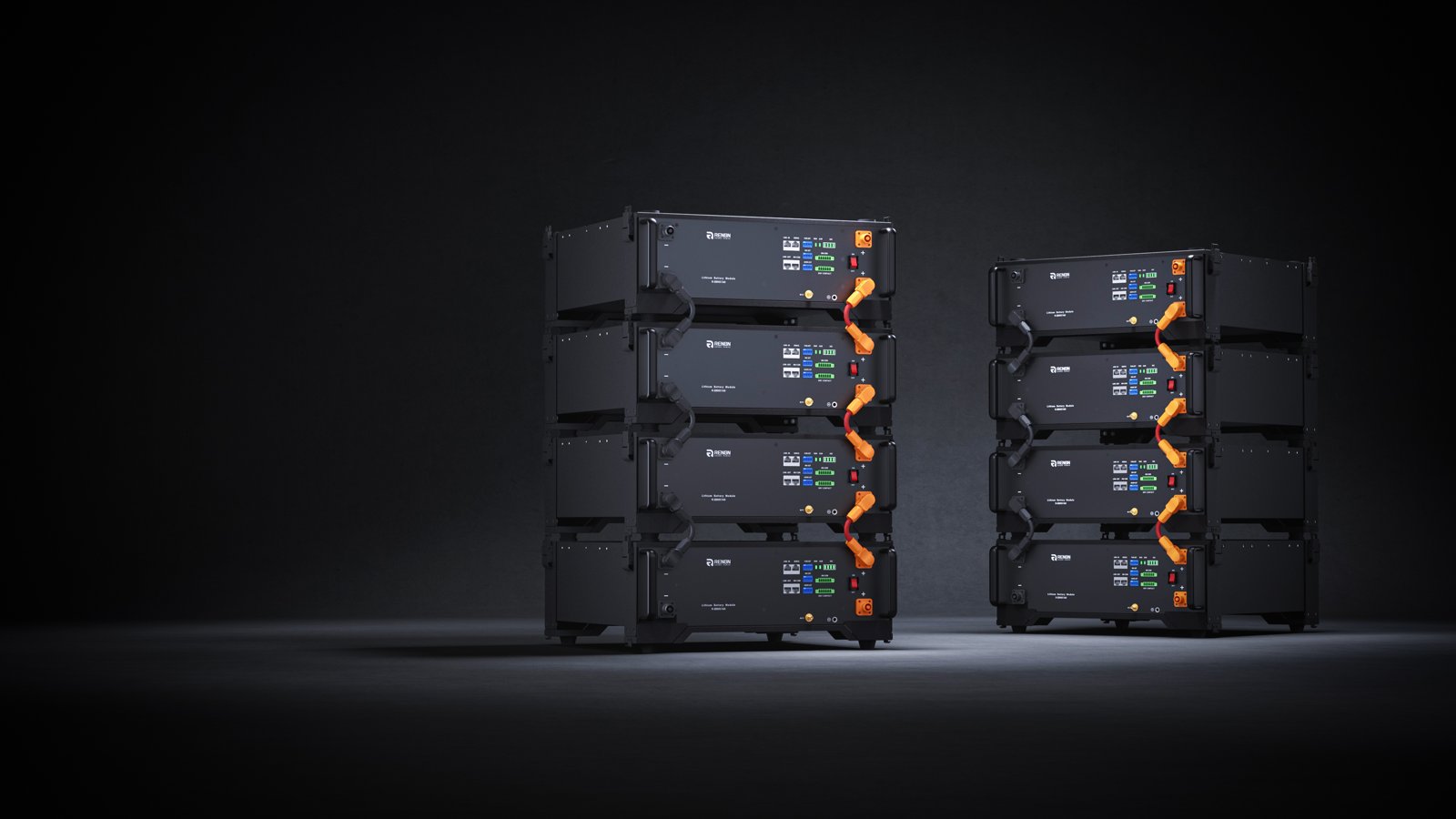

Rack-mount 48 V modular battery — 5.12 kWh per module, expandable to 31 in parallel.
The Renon Power EBrick is a rack-mount low-voltage (51.2 V) LiFePO4 battery module rated at 5.12 kWh and 4.8 kW, designed for fast, flexible installation. Up to 31 units connect in parallel for growing capacity. LiFePO4 chemistry delivers 8,000 cycles with a 10-year warranty, and Wi-Fi/app connectivity provides real-time monitoring in a compact indoor IP20 rack-mount form factor.
Key features
- 5.12 kWh, 4.8 kW per module (51.2 V LiFePO4)
- Rack-mount — fast, flexible installation
- Scalable up to 31 units in parallel
- 8,000-cycle life, 10-year warranty
- Wi-Fi / app monitoring (RS485, CAN)
- Indoor, IP20, fanless natural cooling
Specifications
- Capacity
- 5.12 kWh per module (100 Ah)
- Output Power
- 4.8 kW
- Nominal Voltage
- 51.2 V (43.2–59.2 V)
- Max Operating Current
- 95 A
- Scalability
- Up to 31 units in parallel
- Cycle Life
- 8,000 cycles
- Warranty
- 10 years
- IP Rating
- IP20 (indoor)
- Cooling
- Natural (fanless)
- Dimensions
- 17.3 × 16.5 × 5.2 in
- Weight
- ~99 lb per module
- Communication
- RS485, CAN, Wi-Fi
- Certifications
- UL1973, UL9540A, IEC 62619, UN 38.3, CEI 0-21, UKCA
- Model
- R-EB005161
Specifications shown for reference. Lumis will confirm final scope and configuration during system design.
