Renon Power · Wall- or Floor-Mounted LV Battery
Renon Power Xcellent Plus
16 kWh LFP home battery — 10.2 kW output, wall or floor mount, scalable to 31 units.

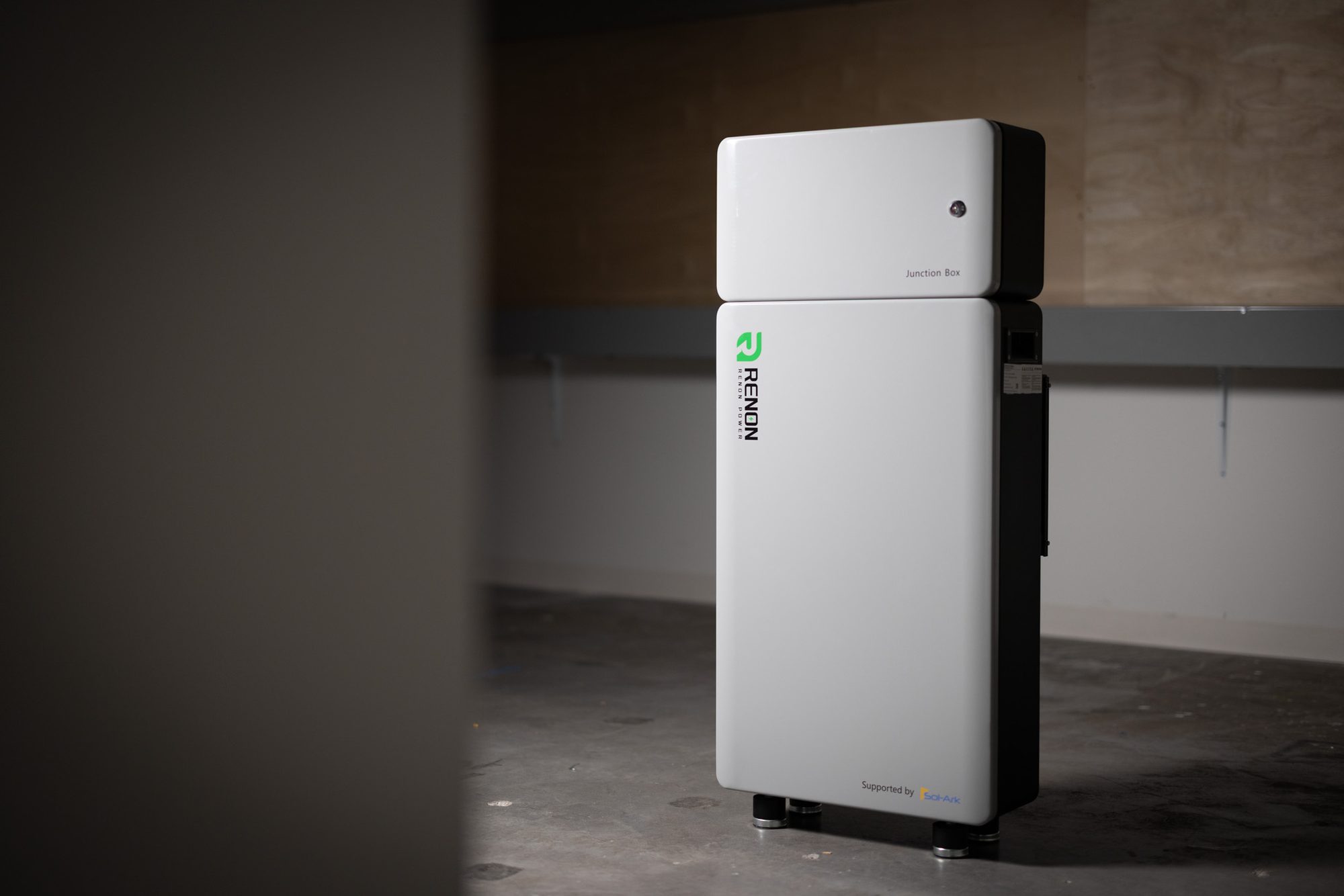

The Renon Power Xcellent Plus is a 16 kWh lithium iron phosphate (LiFePO4) residential battery delivering 10.2 kW of output power. It installs wall-mounted or floor-standing, indoors or out, with an IP65-rated enclosure and fanless natural cooling for quiet operation. Rated for 8,000 cycles and backed by a 10-year warranty, it scales by paralleling up to 31 units and ships with its junction box included for streamlined wiring.
Key features
- 16 kWh usable capacity (314 Ah LiFePO4)
- 10.2 kW output power, 200 A max operating current
- Wall- or floor-mounted, indoor or outdoor (IP65)

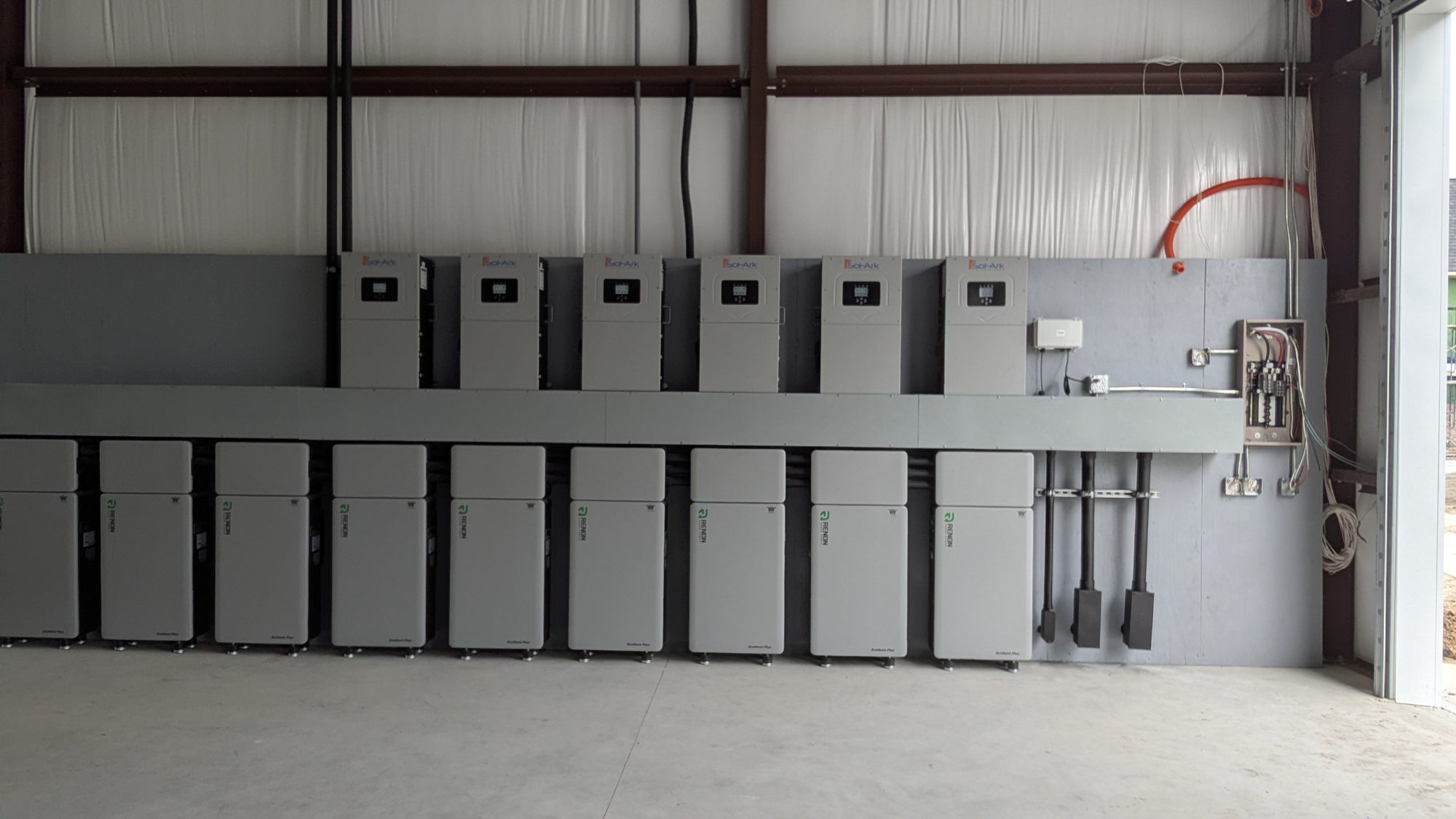

- Scalable up to 31 units in parallel
- 8,000-cycle life with a 10-year warranty
- Fanless natural cooling — quiet operation
- Junction box included
Specifications
- Capacity
- 16 kWh (314 Ah)
- Output Power
- 10.2 kW
- Nominal Voltage
- 51.2 V
- Voltage Range
- 43.2 – 59.2 V
- Max Operating Current
- 200 A
- Scalability
- Up to 31 units in parallel
- Cycle Life
- 8,000 cycles
- Warranty
- 10 years
- IP Rating
- IP65
- Operating Temp
- Charge 32–122°F / Discharge –4–122°F
- Dimensions
- 22 × 8.3 × 34.6 in
- Net Weight
- ~351 lb
- Certifications
- UN38.3, UL 9540, UL 9540A, UL 1973
- Model
- R-XC016161-US
Specifications shown for reference. Lumis will confirm final scope and configuration during system design.
