Renon Power · Modular LV Battery System

Renon Power Xtreme LV

Stackable 48 V home battery — 10.24 to 40.96 kWh, 8,000 cycles, 10-yr warranty.

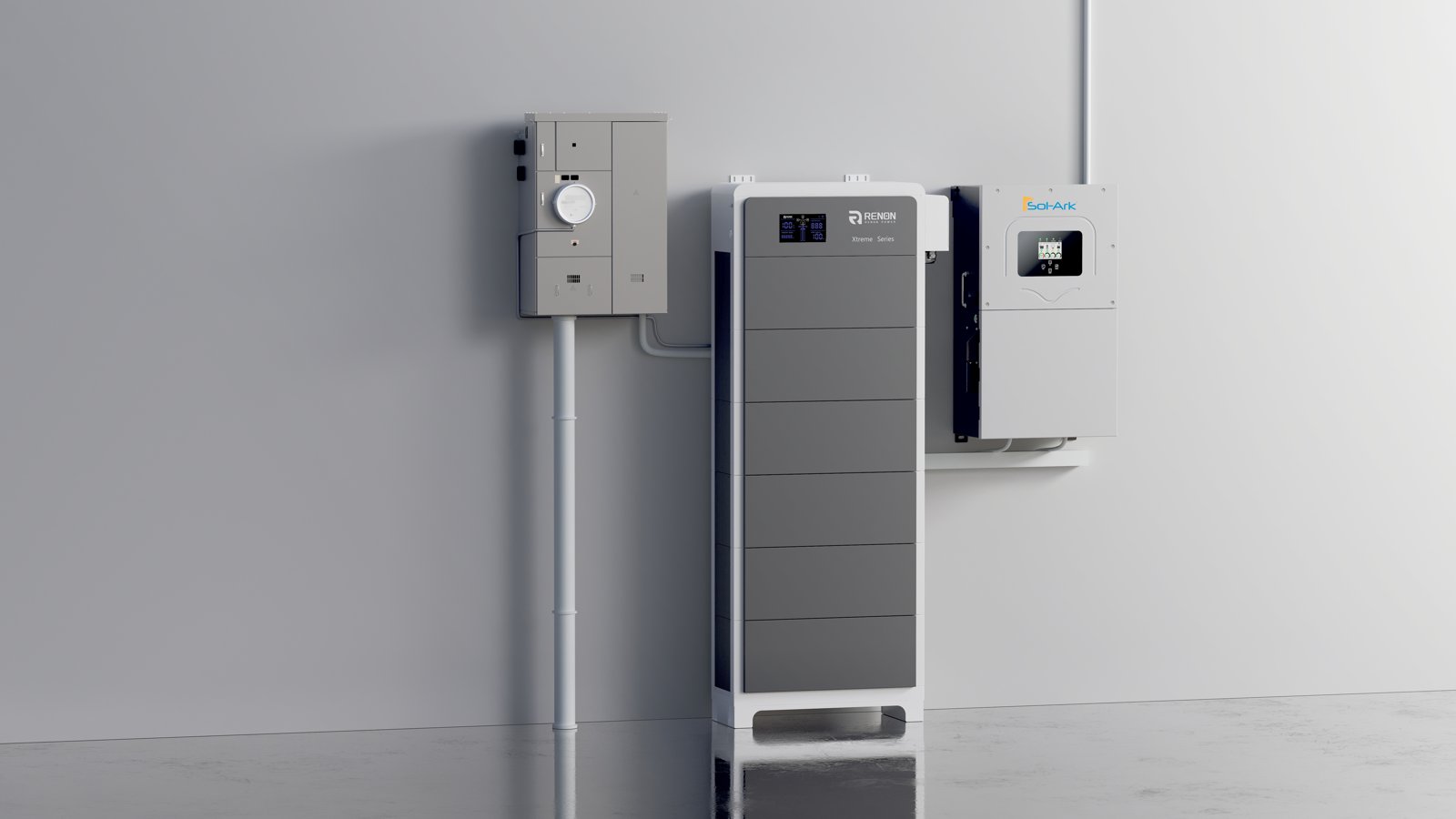

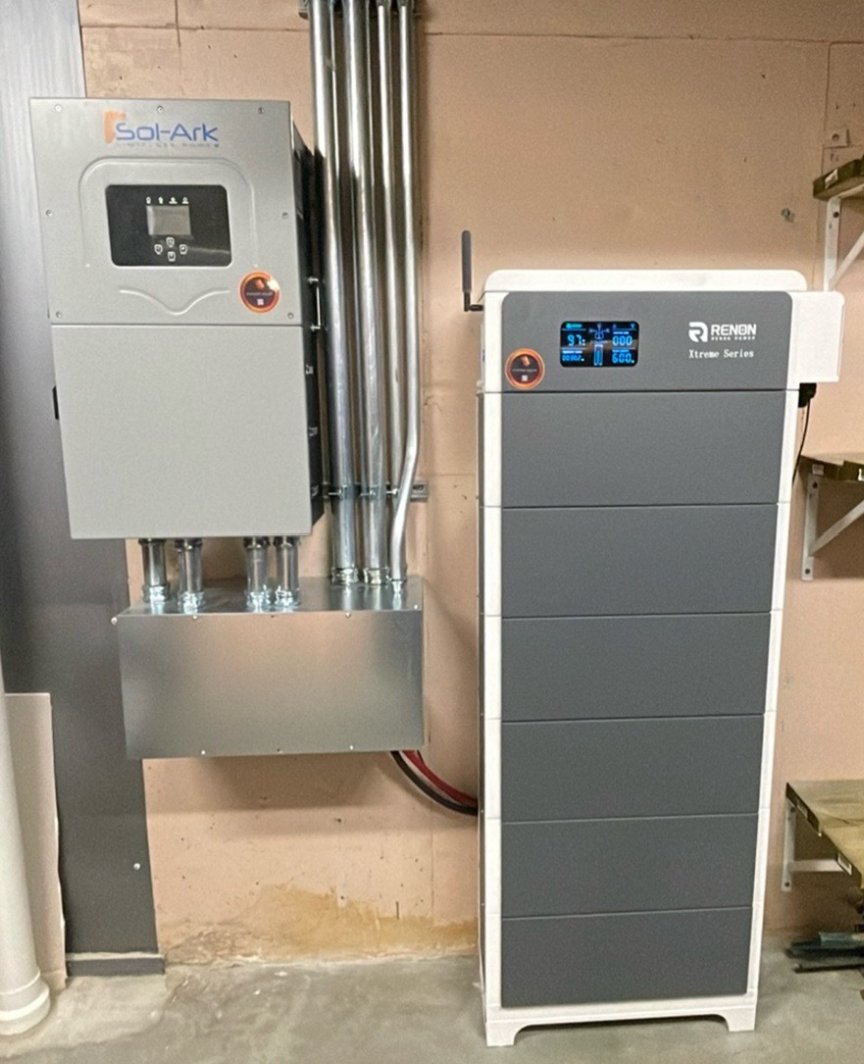

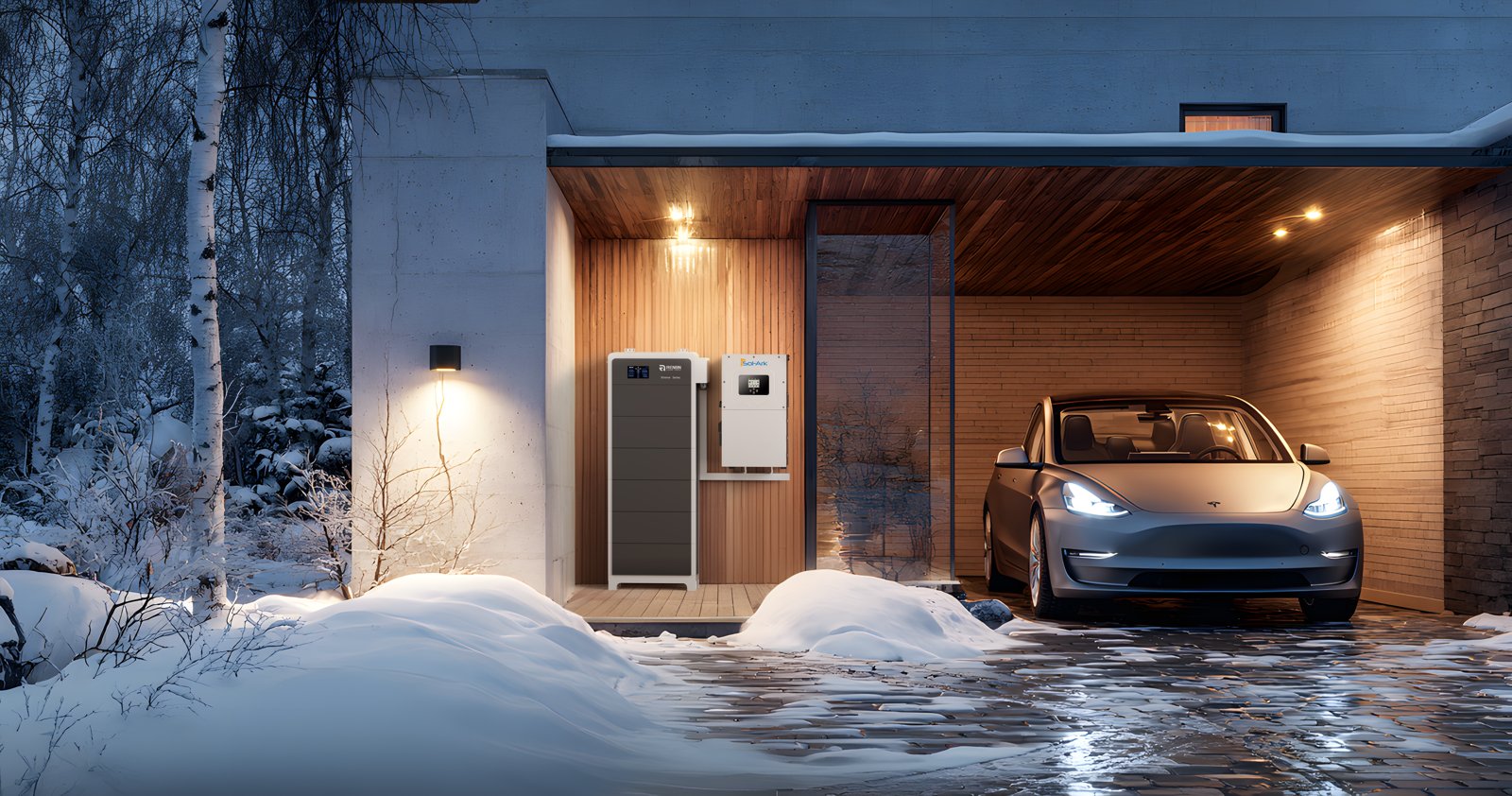

The Renon Power Xtreme LV is a stackable low-voltage (51.2 V) LiFePO4 home battery that scales from 10.24 kWh (2 modules) to 40.96 kWh (8 modules) on a single tower, with up to 15 towers in parallel. Built for peak shaving, self-consumption and whole-home backup, it delivers up to 15.4 kW, runs on fanless natural cooling, and carries an IP65 rating for indoor or outdoor installation. Rated for 8,000 cycles and backed by a 10-year warranty, with RS485/CAN/Wi-Fi monitoring.

Key features

• Stackable 10.24–40.96 kWh (2–8 modules per tower)
• Up to 15 towers in parallel
• 51.2 V LiFePO4, up to 15.4 kW output
• 8,000-cycle life, 10-year warranty
• IP65 — indoor or outdoor, fanless natural cooling
• Peak shaving, self-consumption, emergency backup
• RS485 / CAN / Wi-Fi app monitoring

Specifications

Configuration

Stackable 51.2 V modular (5.12 kWh/module)

Capacity

10.24 – 40.96 kWh (2–8 modules)

Nominal Voltage

51.2 V

Chemistry

LiFePO4

Scalability

Up to 15 towers in parallel

Cycle Life

8,000 cycles

Warranty

10 years

IP Rating

IP65 (indoor or outdoor)

Cooling

Natural (fanless)

Operating Temp

Charge 32–122°F / Discharge –4–122°F

Communication

RS485, CAN, Wi-Fi

Certifications

UL1973, UL9540, UL9540A, IEC 62619, UN 38.3, CEI 0-21, UKCA

Specifications shown for reference. Lumis will confirm final scope and configuration during system design.
